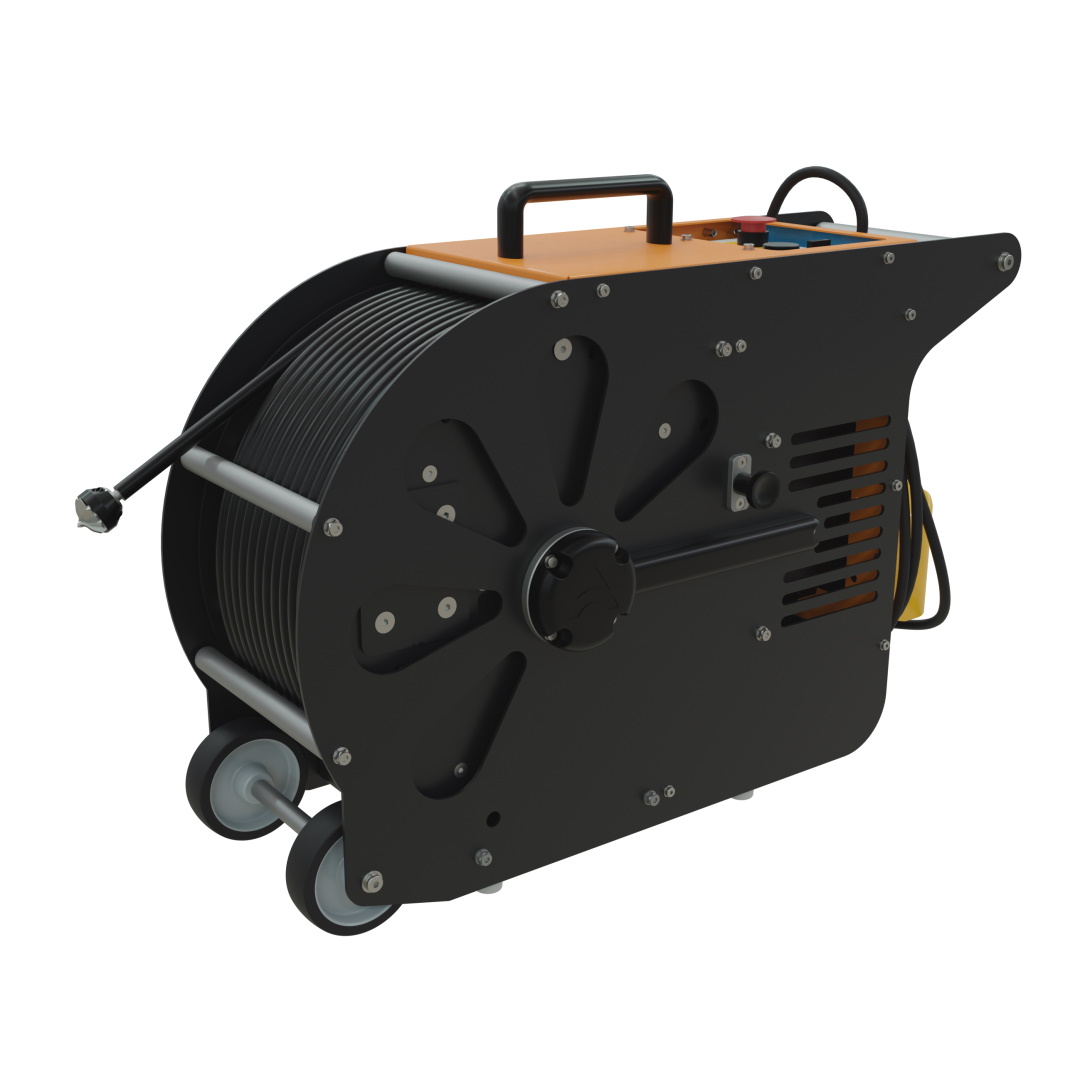

Fixaline FIXER 8
FIXER 8 is a high-speed pipe cleaning machine. Unit can be used for pipe cleaning, grinding, drilling and coating.
| Size (cm / inches) | 53 x 27 x 73 cm / 20.87 x 10.63 x 28.74 in |
| Weight (kg / lb) | Without shaft 25 kg / 55.1 lb
With shaft 32 kg / 70,5 lb |
| Shaft Ø (mm / inches)
Shaft Length (m / feet) |
Ø8 / 0.31 Flexible Shaft with Outer Casing
19,5 / 64 |
| Rotating max. speed (rpm) | 2250 |
| Voltage and power rating (V/kW) | 240 V / 0.75 kW or 120 V / 0.75 kW |
| Input Power | Electric, 1-phase, Input 220-240VAC / 50-60Hz / 10A or Electric, 1-phase, Input 110-120VAC / 50-60Hz / 17A |
| IP Class | 54 |
| Diameter (mm / inches) | DN30-100 / 1.18-4 |
| Other technical information
|
Adjustable speed control Direction Switch Foot Pedal (OPC) Emergency Stop Electronic Safety Switch Wheels Robust steel frames |
