Renoline - Installation Machinery

mini inversion drum *NEW STYLE

CODE: airmachinemini

	Suitable for 100mm – 150mm Ø Liners
	Quick-release removable sides for easy installation of inversion liner or inflation hose
	Large quick-release front plate with viewing window
	Complete with 100mm basket and 150mm basket
	holds 60 metres of 100/150mm inflation hose, or 25 metres of blow-in inversion liner.
	Light-weight aluminium construction

Price £1995.00

midi inversion drum *NEW STYLE

CODE: airmachinemidi

	Suitable for 100mm – 300mm Ø Liners
	Large quick-release front plate with viewing window
	Complete with 100/150/225 + 300mm Nozzles
	Holds 100 metres of 100/300mm inflation hose, or 40 metres of blow-in inversion liner.
	Light-weight aluminium construction

Price £3195.00

inversion cannon *NEW PRODUCT

CODE: invcannon

	Inverts continuous length of liner – lengths restricted only by curing time of resin
	Ideal for long-runs or single ended access applications
	Suitable for 100mm – 300mm Ø Liners
	Options include extention adaptor, hoses, nozzles and end piece

Price £4995.00

Complete Renoline installation package for lining 100mm Ø - 300mm Ø

MINI INVERSION PACK	MIDI INVERSION PACK
100mm Ø - 150mm Ø	100mm Ø - 300mm Ø

Pack includes:
	Impregnating Machine & Table
	240v Compressor
	50mx100mm Ø Inflation Hose
	50mx100mm Ø Superliner
	3x20kg Open Top Kegs polyester resin)
	5kg Accelerator
	5kg Activator
	Punch Set
	2x Clamp Sets
	2x Measuring Jugs
	Large Funnel
	Mixing Paddle
	2x Buckets

MINI INVERSION PACK

100mm Ø - 150mm Ø

CODE: INVERSION PACK 1

Price £3150.00

MIDI INVERSION PACK

100mm Ø - 300mm Ø

CODE: INVERSION PACK 2

Price £4175.00

mini air compressor CODE: aircomp240v Price £247.00
	240v

mini air compressor CODE: aircomp110v Price £295.00
	110v

liner wetting out roller CODE: impmac Price £695.00
	Combi/Liner Impregnating Machine with Rollers & Table

liner wetting out roller CODE: imp Price £595.00
	Liner Impregnating Machine with rollers

Handheld Nip Roller CODE: nipimp Price £279.00
	Handheld roller for liner impregnating
	For 100-150mm Liners
	Adjustable stainless steel rollers

floor roller CODE: floimp Price £195.00
	Handle & roller for liner impregnating
	For 100-225mm Liners
	Stainless steel rollers
	Powder-coated steel frame

hot box CODE: hotbox Price £1350.00
	Fast Cure Combination Air/Water Inversion Hot Box
	For Hot Cure

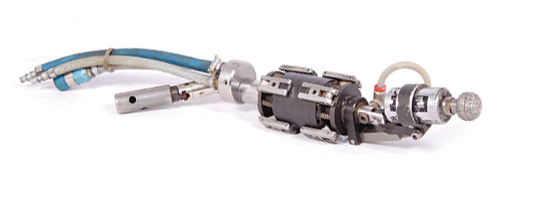

internal lateral cutter CODE: remote lateral cutter Price £5995.00
	Lateral Cutter Supplied with 20m hose, rods & 1 diamond cutting head
	100 - 150mm

spare lateral cutter head CODE: diamond head Price £180.00
	Diamond Cutting Head for Lateral Cutter
	4-10 cuts

spare lateral cutter head CODE: tungston head Price £599.00
	Tungsten cutting Head for Lateral Cutter
	100 cuts

winch CODE: winch Price £1795.00
	Capstan Winch 110v or 240v up to 1000 kilo pull including strong arm
	For winching liners into place

hydraulic acro CODE: strong arm Price £117.04
	For use in manholes
	For Straight & Long Pulls

VACUUM PUMP *NEW PRODUCT
CODE: VACUUMPUMP

	Vacuum Pump for rapid resin-impregnation of liners
	Adjustable vacuum
	Available in 110v or 240v version
